WUXI JINHAIHUA TECHNOLOGY CO.,LTD Prevent & Protect
6 Years
| Ask Lasest Price | |
| Brand Name : | DESEO |
| Model Number : | HSD3500 |
| Certification : | CE/ISO 9001 |
| Price : | USD 1200/UNIT |
| Payment Terms : | T/T |
| Supply Ability : | 200 unit per month |
| Delivery Time : | 7-20 days |

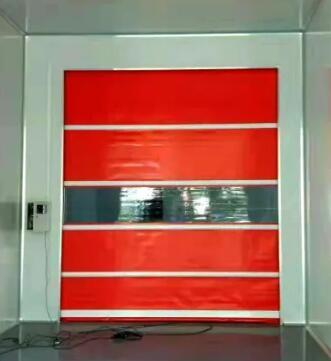

| PVC high speed door/industrial rolling door | |
| Cloth color | Red, yellow, blue, white, full transparent, etc. |
| Opening speed | 0.6-2.0M/SAdjustable |
| At the top of the structure | The chassis is made of 2mm thick galvanized steel plate. The surface of the 6mm thick steel plate is sprayed and processed into the color required by customers. The reel is installed in the inner reel, shaft end and bearing seat. |
| Door frame | 2.0mm high quality cold rolled sheet steel structure, high quality baking finish and other processes |
| Window | PVC transparent window, thickness 1.5mm |
| Product Features | Mainly to play the role of rapid isolation, thus ensuring the quality of the workshop without dust, with insulation, insect proof, wind resistance, sound insulation, anti-odor and other functions. |
Technical Parameter:
| Tensile strength(wrap/weft) | 5700/5100N/5m |
| Tearing strength(wrap/weft) | 900/800N |
| Use temperature | -30°C- +70°C |
| Fire protection Level | French standard NF-P92-503 |
Features
1) Safety
radar sensor,photo sensor,air safety bag include
2) Tightness
Aluminium alloy seal brushes are added to either side of the slide
way,reducing noise and enhancing tightness,there is flexible PVC
banner at bottom,making it cling to all kinds of uneven ground
closely and meeting the standard of seal.
3) Power
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4) Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
5) Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming
controlling,circuit breaker,fuse gear and relay can be compatible
with common protector.
6) Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel
sheets)and baking varnish
Industrial PVC High Speed Rolling Shutter Doors, Automatic Plastic
Fabric Rapid Rolling up Door (HF-1041)
Product Use :
Internal/External rapid rolling door, used in high-frequency
logistics channel. The door curtain wind resistant pole was formed
by the wind resistant steel tube( wind resistant pole: it is on the
request about the door opening's wind pressure to deploy), strong
wind resistant, suitable for large-scale external doors and in
request wind resistant's internal doors, sealing, vermins-proof and
dust-proof, protecting the working environment.
Applications:
* Indoor, outdoor which requests resistant the wind/ temperature .
* Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
* The Industries In high request in environmental health.
|
|
