WUXI JINHAIHUA TECHNOLOGY CO.,LTD Prevent & Protect
6 Years
| Ask Lasest Price | |
| Brand Name : | DESEO |
| Model Number : | SD2600 |
| Certification : | CE/ISO9001:2008 |
| Price : | USD 800/UNIT |
| Payment Terms : | T/T |
| Supply Ability : | 200 unit per month |
| Delivery Time : | 7-20 days |
Parts: imported motor, torsional spring balancing system, rubber handle, anti-berak safety device for torsion spring, C guide rail, buffer, sealing strips
Advantages: wind resistance, prevention of burglary, resistance to corrosion, lifting speed
Supply voltage: 380V/three-phase/50HZ

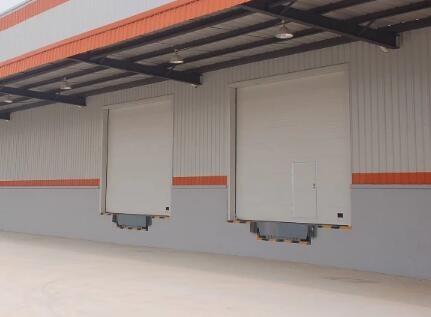

Industrial insulated overhead sectional door is a high-quality, heavy-duty insulated door that provides protection against heat and cold environments. A wide array of options allow these doors to meet the most project requirements that call for a degree of thermal efficiency.
Product specification :
| Product name: | Insulate Door Panel |
| Material | Galvanized stell + Polyurethane foam |
| Door plank grain | Stripes/squares |
| Max Door panels length: | 8000mm |
| Max Door panels width: | 420mm-530mm |
| Max Door Panels Thickness: | 50mm~80mm |
CE-Approved Industrial Sectional Overhead Vertical Door
| Applicable door opening | Maximum width 9000/Maximum height 8000 |
| Working voltage /frequency | 380v/50HZ |
| Motor power | 180W,380W |
| Thickness of door panel | 40mm,50mm |
| Heat transfer coefficient | K≤0.8/m2.K |
| Sound insulation property | 23bd |
| Applicable temperature | -40℃-50℃ |
| Resistance to wind pressure | 450N/m2(With windproof reinforcement, having resistance to wind pressure, 650N/m2 in resistance to wind pressure) |
| Operating speed | 0.2m/s |
|
|
