WUXI JINHAIHUA TECHNOLOGY CO.,LTD Prevent & Protect
6 Years
| Ask Lasest Price | |
| Brand Name : | DESEO |
| Model Number : | DS2800 |
| Certification : | CE/ISO9001 |
| Price : | USD 800 |
| Payment Terms : | T/T |
| Supply Ability : | 200 unit per month |
| Delivery Time : | 7-20 days |
we got the hydraulic dock leveler, it can be directly installed on the edge of platform instead of digging a hole. It is easy to install and use, also convenient for the maintenance. The up and down adjustable height can reach most of the trucks, and the loading capacity is satisfying.
Main Features:
High insulation and strong sealing make moisture, dust and insects
almost eliminated from warehouses.
Application Scope:
Suitable for door shelter applications which have strict
requirements for insulation,defferent type of vehincle and more
wall load-bearing capability.

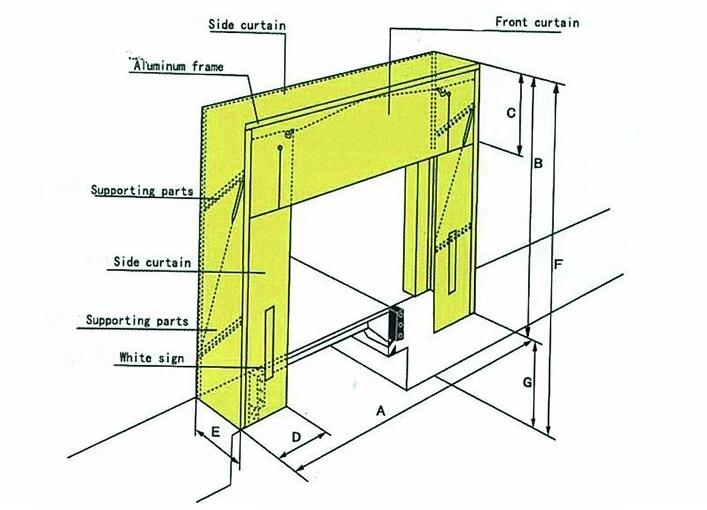

Technical Data:
| Item | Specification |
| Feature & Benefits | a. Adopt insert seal working solution |
| b. Meet various type of truck dimensions and loading condition | |
| c. Keep indoor temperature,cleaning & anti-wind | |
| Surface Material | a. Polyester fabric with PVC coating |
| b.Thickness of Frontal Curtain:2.5 - 3.0mm Thickness of Side Curtain: 0.6 - 0.8mm | |
| c. Density:2.7kg/m2 | |
| d. Strength at break:150N/mm | |
| e. Fabric layer 2 layers | |
| f. Wear-resisting,anti-mildew | |
| g. Fireproof Grade: EU Grade II | |
| h. Anti-tear Capacity:328kg ( vertical )×344kg ( horiental ) | |
| i. Anti-pulling Capacity:398kg ( vertical )×325kg ( horiental ) | |
| Size | 3400(W)*3400(H) MM |
| Metal Frame | Galvanized steel / Aluminium Alloy |
| Temperature Scope | -20ºC ~ +80ºC |
| Color | black / blue or customer-tailor |
|
|
